Nowadays, more and more people like to wear their own fashion clothing rather than the ones that everybody wears. Then many clothing factories receive lots of small orders which are not suitable to use the traditional ways of cutting. With a laser cutter, this is just a piece of cake.
laser cutter file：Download
Required items:
Fabric
2” laser head
Thunder laser used:
Model: Mars 130
Laser Tube: 100 watt
Setting:
Processing Mode: cut
Speed: 300mm/s
Max power: 45%
Min power: 45
The settings are only for reference, users need to find the best setting by testing.

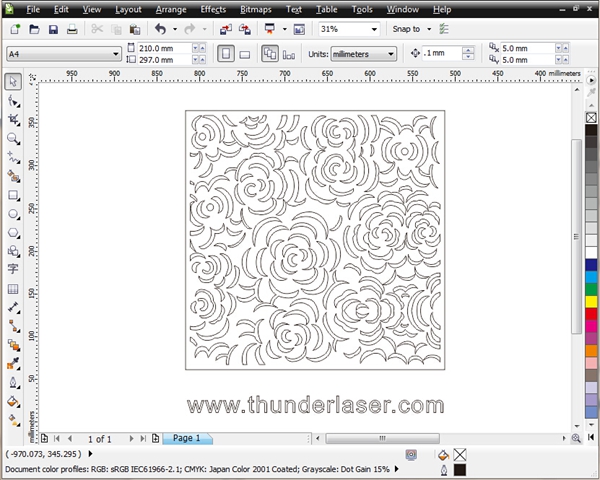

After we design the file in CorelDraw, we send the file to laser software directly by clicking the laser plug-in. Then we input the best setting parameters and “Download” the file to the laser cutter.

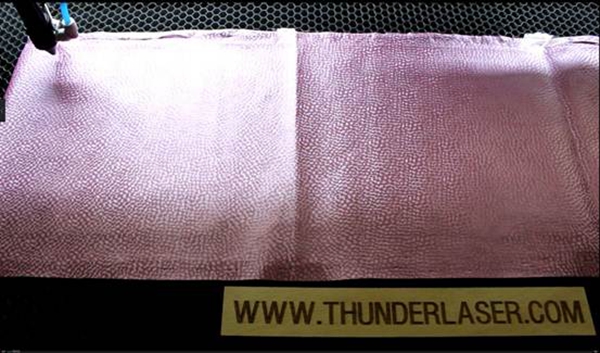

Place the fabric sheet on the machine working table, move the laser head to the right start position, adjust the focal distance, press “Origin” button to set the starting point, then press “Start” to run the job.

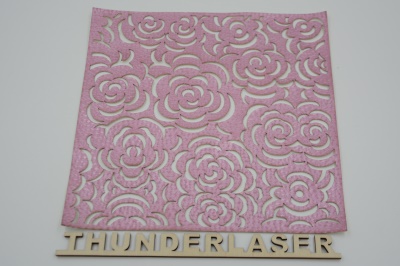

After the laser cutter finish working, take out the fabric pieces and put them aside.
Tips:
1.The power/speed settings will be different depend on different material and different machine configuration, to get the best setting parameters, users need to test several times.
You can download a parameter list from our site is for reference.
https://www.thunderlaser.com.au/laser-download
2.It’s suggested to test whether a strong air assist during laser cutting fabrics is good or not, since there’re many kinds of fabric, and for different fabric, the air requirements are different.If you want to learn more about our laser cutter, you can also watch our videos:
https://www.thunderlaser.com.au/video/what-laser-cutter-can-create.html
If you have any question, just feel free to contact with us.
