Featuring a low-power glass tube for unparalleled carving effects, elevate your craftsmanship with precision and versatility.

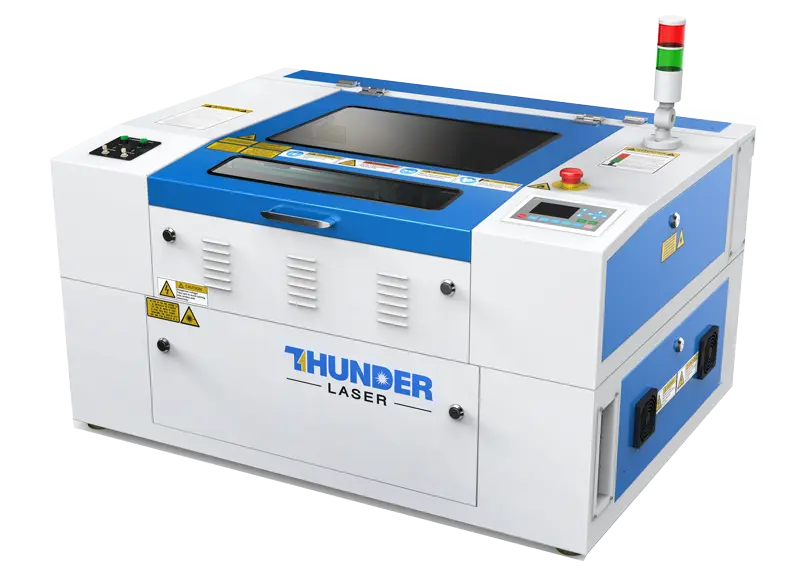

Unleash your artistic vision and own the pinnacle of laser engraving excellence - Nova24 !
1000mm/s speed for engraving photo,super smooth vector cutting quality.
| Laser System | NOVA 24 | ||
| Laser Tube Wattage | 40-60Watt | ||
| Work Area | 600x400mm(23.6″ x 15.7″) | ||
| Max Part Size (WxLxH) | Front door closed |
700x530x170mm(after taking out the honeycomb bed)(27.6″ x 20.9″ x6.7″) |
|
| Pass-through door |
700x∞x20mm(27.6″ x ∞” x 0.8″) |
||
| Table Size | 700x530mm(27.6″ x 20.9″) | ||
| Z Axis Height | 150mm(5.9″) | ||
| Dimensions(WxDxH) |
1070x810x610mm(42.1″ x 31.9″ x24″) |
||
| Net Weight | 130kgs(287lbs) | ||
| Laser Type | Sealed Glass CO2 Laser Tube | ||
| Cooling | Water Cooled | ||
| Motion Control System | High-Speed Hybrid servo motor | ||
| Maximum Speed | 1000mm/S(39.4 IPS) | ||
| Speed and Power Control (engraving depth) | Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping. | ||
| Operating Modes | Optimized raster, vector, and combined mode | ||
| Resolution(DPI) | User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head) | ||
| Computer Interface | Ethernet and USB Connection | ||
| Compatible Operating Systems | Windows XP/2000/Vista/7/8/10,macOS(Lightburn only) | ||
| Buffer Memory | 128MB Standard | ||
| Display Panel | 3.5″ LCD panel showing current file, total working time, laser power, speed etc. | ||
| Electrical Requirements | 110 to 240 volts, 50 or 60 Hz, single phase | ||
| Ventilation System | Nova24, Nova35: 150mm, Nova51,Nova63: 200mm | ||
If your material is not in the below list, our Applications Team would be happy to assist you to test it.
| Materials | Engrave | Cut |
| Wood | √ | √ |
| Acrylic | √ | √ |
| Delrin | √ | √ |
| Cloth | √ | √ |
| Leather | √ | √ |
| Mat Board | √ | √ |
| Melamine | √ | √ |
| Paper | √ | √ |
| Mylar | √ | √ |
| Pressboard | √ | √ |
| Rubber | √ | √ |
| Wood Veneer | √ | √ |
| Fiberglass | √ | √ |
| Plastic | √ | √ |
| Cork | √ | √ |
| Corian | √ | √ |
| Twill | √ | √ |
| Anodized Aluminum | √ | X |
| Painted Metals | √ | X |
| Tile | √ | X |
| Glass | √ | X |
| Coated Metals | √ | X |
| Ceramics | √ | X |
| Marble | √ | X |
| Stainless Steel | * | X |
| Brass | * | X |
| Titanium | * | X |
| Bare Metal | * | X |
A rotary tool allows for engraving cylindrical objects such as glass, wood or metal products like tumblers, cups, mugs, wine bottles or pens
Engrave high precision designs, photos, and 3D engraving.
Thunderlaser exclusive lightburn DSP license key
Our Desktop Laser Engraver machines empower you to push the boundaries of endless possibilities.
Upgrade your crafting with a Desktop Laser Engraver from Nova24. Precision, efficiency, and unmatched innovation for amazing projects.
My father and I acquired a Nova 24 Desktop Laser Engraver over a year ago, and our satisfaction endures. Mandy and Glen have consistently provided support throughout.
Great parts, great assembly, great people. Thunder Laser offers absolutely the best value for a desktop laser engraver!
I adore my Nova 24 Desktop Laser Engraver, and immense gratitude to Glenn for addressing my myriad questions day or night, both before and after my purchase。
I use 3 Desktop Laser Engraver machines at our Local Maker space, and I love them! These machines are in constant use, and they are holding up very well. I came for the woods lab, but I’m staying for the Desktop Laser Engravers!
Couldn’t recommend Thunder Laser’s Nova 24 Desktop Laser Engraver enough. Reasonably priced, well-built machine, and Glenn’s amazing service. Cheers, guys!
